Deskripsi Produk
Inverter frekuensi kontrol vektor tanpa sensor PH100 populer digunakan karena kualitasnya yang hebat dan kinerja yang stabil.Penggerak ac kontrol vektor tanpa sensor ini memiliki desain struktur yang ringkas dan terbuat dari komponen yang tahan lama sehingga dapat memenuhi berbagai jenis tantangan beban dan skenario aplikasi.
Solar Pump Inverter Fase Tunggal Fitur: (Rentang daya: 0.75-7.5kw 220v, 0.75-560kw 380v)
1. Desain perangkat keras yang kuat dengan bahan lengkap
2. Semua seri menggunakan modul IGBT
3. Mengadopsi algoritma kontrol vektor maju internasional
4.Gunakan TI DSP generasi terbaru, kecepatan komputasinya meningkat 50%
5.Menawarkan torsi awal 100% dengan kontrol vektor tanpa sensor
6. Fungsi Perlindungan Lengkap seperti: tegangan di bawah/di atas, arus berlebih, fase hilang…
7.Mudah Digunakan dan terminal multi-fungsi yang kaya
8.Rentang tegangan input lebar, hingga ±20%
Daftar Model Solar Pump Inverter Fase Tunggal:
| Model inverter | Kapasitas kekuatan | Arus keluaran | Motor pas | Ukuran kemasan | Berat |
| | kVA | SEBUAH | kW | HP | MM | KG |
| Catu daya tunggal/tiga fase: 220V, 50/60Hz |
| PH100-2S-0P7GB | 1.5 | 4 | 0,75 | 1 | 252*195*230 | 2 |
| PH100-2S-1P5GB | 3 | 7 | 1.5 | 2 | | 2 |
| PH100-2S-2P2GB | 4 | 10 | 2.2 | 3 | | 2.5 |
| PH100-2S-004GB | 5.9 | 16 | 3.7 | 5 | 315*235*253 | 4.3 |
| PH100-2S-5P5GB | 8.9 | 20 | 5.5 | 7.5 | | 4.5 |
| | Kapasitas kekuatan | Arus keluaran | Motor pas | Ukuran kemasan | Berat |
| Model inverter | kVA | SEBUAH | kW | HP | MM | KG |
| Catu daya tiga fase: 380V, 50/60Hz |
| PH100-4T-0P7GB/1P5PB | 1.5 | 2.3 | 0,75 | 1 | 252*195*230 | 2 |
| PH100-4T-1P5GB/2P2PB | 3 | 3.7 | 1.5 | 2 | | 2 |
| PH100-4T-2P2GB/004PB | 4 | 5.1 | 2.2 | 3 | | 3.2 |
| PH100-4T-004GB/5P5PB | 5.9 | 10 | 3.7 | 5 | | 3.5 |
| PH100-4T-5P5GB/7P5PB | 8.9 | 13 | 5.5 | 7.5 | 315*235*253 | 4 |
| PH100-4T-7P5GB/011PB | 11 | 17 | 7.5 | 10 | | 4.2 |
| PH100-4T-011GB/ 015PB | 17 | 25 | 11 | 15 | | 4.5 |
| PH100-4T-015GB/018PB | 21 | 32 | 15 | 20 | 395*295*275 | 7.1 |
| PH100-4T-018GB/022PB | 24 | 37 | 18.5 | 25 | | 7.5 |
| PH100-4T-022GB/030PB | 30 | 45 | 22 | 30 | 395*295*275 | 12 |
| PH100-4T-030G/037P | 40 | 60 | 30 | 40 | 640*410*390 | 17 |
| PH100-4T-037G/045P | 57 | 75 | 37 | 50 | | 17.5 |
| PH100-4T-045G/055P | 69 | 91 | 45 | 60 | 700*410*460 | 35 |
| PH100-4T-055G/075P | 85 | 112 | 55 | 75 | | 36 |
| PH100-4T-075G/090P | 114 | 150 | 75 | 100 | 680*485*415 | 45 |
| PH100-4T-090G/110P | 134 | 176 | 90 | 125 | | 51 |
| PH100-4T-110G/132P | 160 | 210 | 110 | 150 | | 54 |
| PH100-4T-132G/160P | 192 | 253 | 132 | 200 | 885*535*370 | 86 |
| PH100-4T-160G/185P | 231 | 304 | 160 | 250 | | 90 |
| PH100-4T-185G/200P | 240 | 340 | 185 | 280 | | 98 |
| PH100-4T-200G/220P | 250 | 377 | 200 | 300 | | 104 |
| PH100-4T-220G/250P | 280 | 426 | 220 | 300 | 1180*760*450 | 180 |
| PH100-4T-250G/280P | 355 | 465 | 250 | 400 | | 186 |
| PH100-4T-280G/315P | 396 | 520 | 280 | 370 | | 190 |
| PH100-4T-315G/355P | 445 | 585 | 315 | 500 | 1280*860*600 | 220 |
| PH100-4T-355G/400P | 500 | 650 | 355 | 420 | | 220 |
| PH100-4T-400G/450P | 565 | 725 | 400 | 530 | | 230 |
| PH100-4T-450G/500P | 630 | 820 | 450 | 600 | 1850*1200*540 | 490 |
| PH100-4T-500G/560P | 700 | 880 | 500 | 660 | | 490 |
| PH100-4T-560G/630P | 784 | 990 | 560 | 760 | | 520 |
Pasar inverter pompa Phaeton Solar menunjukkan:
Proses produksi inverter pompa surya Phaeton:

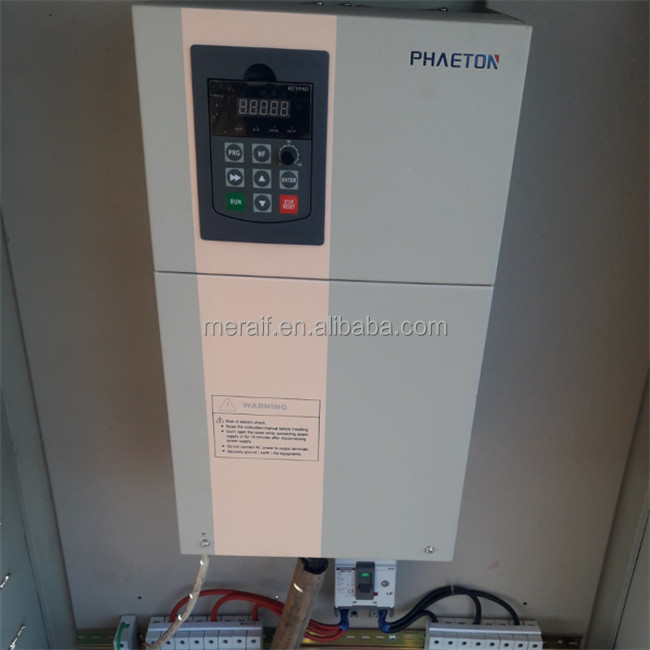

Gambar menunjukkan Solar Pump Inverter Single Phase:
